Gold & Silver Card Laminating Machine

The YDLM1300B Gantry Multifunctional Aluminum Metallized Cardboard Laminating (Coating) Machine is a dedicated solution for producing gold/silver cardboard and aluminized transfer paper. It supports wet lamination, peeling, back coating, and online drying, with a working speed of 15–150m/min and a width range of 600–1200mm. Featuring four-roller transfer coating and anilox roller direct coating, it ensures excellent flatness and high efficiency for premium packaging materials.

Inquiry

WhatsApp：8613738772345

Detailed Description
Product Encyclopedia

Item	Specification
Model	YDLM1300B
Effective Working Width	600–1200 mm
Mechanical Speed	180 m/min (Max.)
Working Speed	15–150 m/min
Base Materials	PET Film: 0.012–0.040 mm OPP Film: 0.02–0.06 mm Paper: 100–350 g/m² Aluminum Foil: 0.006–0.007 mm
Lamination Type	Wet Lamination (Water-Based Glue)
Coating Type	Four-Roller Transfer Coating + Anilox Roller Direct Coating
Paper Unwinding/Rewinding Diameter	Φ1500mm / Φ1600mm
Film/Peeling Rewinding Diameter	Φ600mm
Heating Tunnel Temperature	≤130℃
Heating Tunnel Length	Upper: 15m, Lower: 8.6m
Power Supply	380V ±10%, 50Hz
Motor/Heating/Normal Power	60kW / 216kW / 80kW
Overall Dimension (L×W×H)	22330×3700×4500 mm
Total Weight	40 t

YDLM1300B Gantry Multifunctional Gold & Silver Cardboard Laminating & Coating Machine

Product Encyclopedia (English Version)

1. Product Introduction

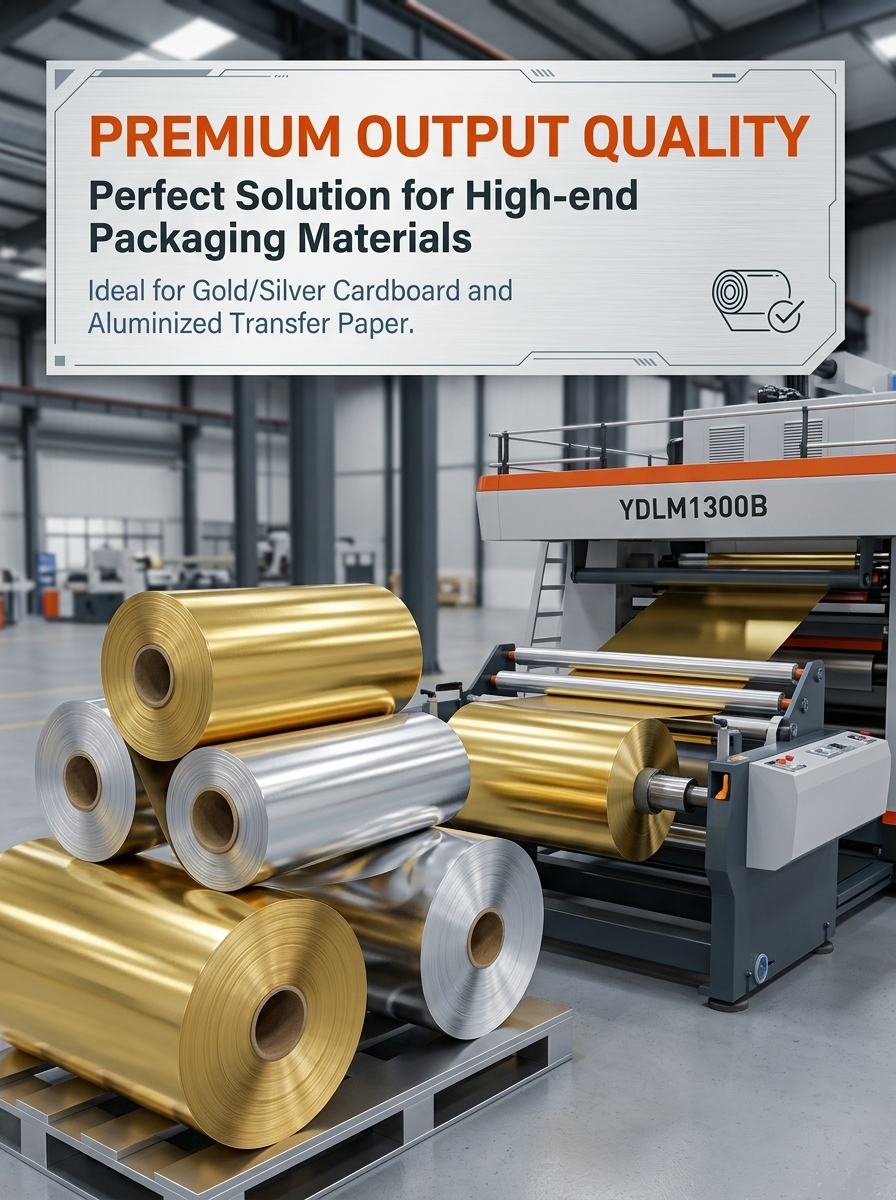

Developed by Wenzhou Yueda Packaging Machinery Co., Ltd., the YDLM1300B is an all-in-one high-end production equipment. It is specially designed for industrial manufacturing of gold & silver cardboard, aluminized transfer paper, laser holographic base materials and other premium packaging materials.

This machine integrates wet lamination, film peeling, back coating, drying and rewinding into one complete production line. It is widely used to produce packaging substrates for tobacco, wine, cosmetics, luxury gifts and other industries.

2. Core Functions & Working Principle

Core Functions

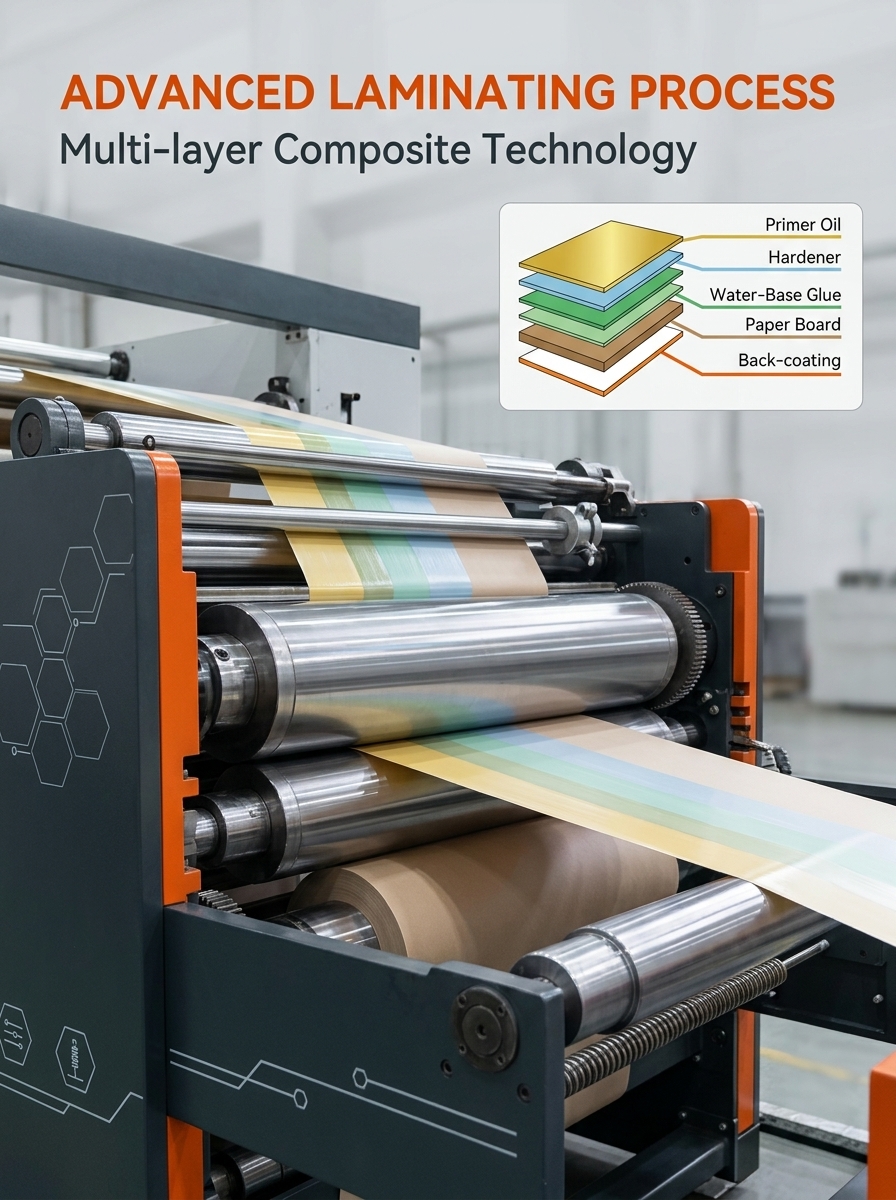

Lamination: Realize wet lamination between base paper and printing film, aluminum foil, aluminized film via water-based adhesive for firm bonding.
Peeling: Precisely separate carrier film from composite materials to keep the transfer layer intact.
Back Coating: Apply primer on the material backside to improve printability and surface flatness.
Drying & Shaping: Adopt dual drying tunnels with multi-stage temperature control to cure adhesive and dry coating thoroughly, delivering wrinkle and bubble-free finished products.

Working Principle

The machine processes materials in continuous roll-to-roll mode. Raw paper rolls and various film materials are unwound synchronously, then go through gluing and lamination procedures. After drying in tunnels, the carrier film is peeled off. The materials will then receive back coating treatment, followed by cooling and final rewinding. The finished rolls are ready for subsequent printing and die-cutting.

3. Key Technologies & Advantages

Gantry Frame Structure: Heavy-duty integrated frame ensures outstanding operational stability, suitable for wide-width and high-speed production with long service life.
Dual Coating System: Equipped with four-roller transfer coating and anilox roller direct coating. Two modes are switchable to match different adhesives and coating thickness requirements, with uniform coating effect.
Wide Adaptability: Effective working width 600–1200 mm and adjustable running speed 15–150 m/min, ideal for both small-batch trial production and mass production.
Closed-loop Tension Control: Stable tension throughout the whole process prevents material stretching and deformation, meeting high precision requirements for premium packaging printing.
Independent Temperature Control: Upper and lower drying tunnels work separately with max temperature ≤130℃, adapting to diverse base materials and cutting energy consumption.

4. Application Industries & Scenarios

Tobacco packaging: Cardboard and laser label substrates for cigarette packages
Wine packaging: Gold cardboard and hot stamping base materials for wine boxes
Cosmetic packaging: Gold & silver cardboard for high-end gift boxes and cosmetic cases
Others: Laser holographic materials, anti-counterfeiting packaging and luxury gift packaging

5. Main Technical Parameters

Item	Specification
Model	YDLM1300B
Effective Working Width	600–1200 mm
Working Speed	15–150 m/min
Applicable Materials	PET/OPP film, aluminum foil, 100–350 g/m² base paper
Coating Type	Four-roller transfer coating & Anilox roller direct coating
Drying Tunnel Length	Upper: 15 m, Lower: 8.6 m
Power Supply	380V ±10%, 50Hz
Overall Dimension (L×W×H)	22330 × 3700 × 4500 mm
Total Weight	40 t

6. Product Value & Overall Strength

Cost Saving & Efficiency Improvement: One machine completes the whole production flow, reducing labor and equipment investment. Production efficiency is greatly improved compared with traditional separate machines.
Stable Product Quality: Optimized tension and drying system guarantee excellent flatness, effectively reducing defective rate in subsequent printing and hot stamping processes.
Strong Compatibility: Compatible with multiple materials and production processes, supporting production of various packaging materials and maximizing equipment utilization.
Reliable After-sales Service: Backed by over 20 years of industry experience, we provide professional installation, commissioning, operator training and long-term maintenance services.
