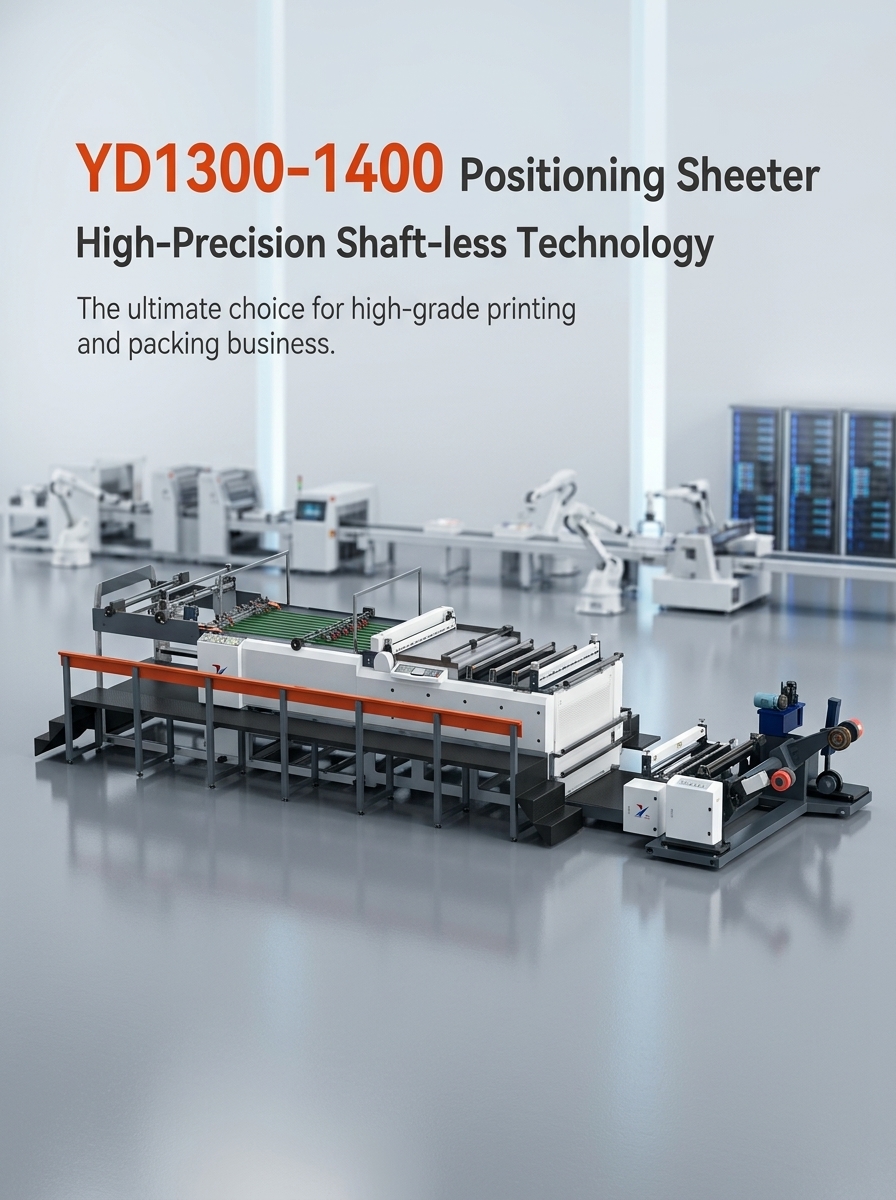

Positioning Sheeter(Shaft -less)

The YD1300/1400 Shaft-less Positioning Sheeter is designed for high-grade packaging materials like sensor-marked cardboard, cigarette pack cardboard, holographic/aluminum foil cardboard. With hydraulic unwinding, ±0.1mm sheeting accuracy, German tracking system and PLC control, it delivers scratch-free, trim-free sheets for direct printing.

Inquiry

WhatsApp：8613738772345

Detailed Description
Product Encyclopedia

Parameter	YD1300	YD1400
Max. Sheet Roll Dia	1600mm	1600mm
Sheet Roll Width	700–1200mm	700–1300mm
Gram-weight For Sheeting	≤600g/m²	≤600g/m²
Sheeting Accuracy	±0.1mm	±0.1mm
Sheeting Length	400mm–1200mm	400mm–1200mm
Stacking Height	1300mm	1300mm
Running Speed	95m/min	90m/min
Mechanical Sheeting Speed	140 sheets/min	140 sheets/min
Pneumatic Pressure	0.8MPa	0.8MPa
Power Supply	AC380V / 50Hz	AC380V / 50Hz
Total Power Consumption	17.5kW	20kW
Machine Dimension (L×W×H)	11.2m × 3.14m × 2.4m	11.2m × 3.24m × 2.4m
Machine Weight	8000kg	8500kg

DWLX1300L-1400L High Precision Positioning Double Rotary Sheet Cutter

Product Detail Page (B2B/Website Version)

1. Product Overview

DWLX1300L-1400L High Precision Positioning Double Rotary Sheet Cutter

The DWLX series is a high-precision, fully automatic sheet-cutting machine specially developed for premium packaging materials. It is ideal for processing cat-eye positioning cardboard, cigarette packet cardboard, aluminum foil cardboard, cosmetic packaging board and other high-grade materials.

Designed with advanced double rotary screw knife technology and synchronized front-back control, the machine delivers clean, scratch-free cuts with minimal paper dust, eliminating the need for post-cut trimming. It is widely used in tobacco, cosmetics, high-end alcohol and luxury gift packaging industries.

2. Core Features & Advantages

✅ High Precision Cutting & Registration:

±0.1mm blank cutting accuracy and ±0.1mm longitudinal/transverse tracking accuracy
German imported photoelectric detection for precise mark alignment
Ensures zero scratches on the paper surface, no trimming required after cutting

✅ Dual Rotary Screw Knife System:

Upper and lower double cyclotron screw knives for stable, clean sheeting
Low paper dust generation, improving production environment and product quality

✅ Advanced Automation & Control:

Hydraulic shaft-less deflection unwinding with automatic tension control
Automatic stop at roll diameter in place, running position and travel limit
Automatic traction, waste discharge and stacking with tracking error display
Adjustable slant angle and automatic standard finding for gauge line cutting

✅ Stable & Efficient Operation:

Synchronous front-back control for consistent performance
Simple inspection and operation, low waste and error rates
High degree of automation reduces labor cost and improves efficiency

3. Applications & Workflow

Typical Applications

Tobacco packaging: Cigarette packet cardboard, cat-eye positioning board
Cosmetic packaging: High-end cosmetic box cardboard
Luxury packaging: Gold foil, aluminum foil and premium gift packaging materials
High-grade label and print finishing

Workflow

Unwinding: Hydraulic shaft-less unwinding with automatic tension control
Traction & Tracking: Synchronous servo traction with tracking error display
Positioning: Photoelectric detection for gauge line and mark alignment
Cutting: Double rotary knife cutting with high precision
Waste Discharge: Automatic waste removal
Stacking: Automatic stacking of finished sheets

4. Why Choose YUEDA

Proven Performance: Stable operation with minimal downtime and low maintenance
Superior Finish: Clean, scratch-free cuts with no trimming required
Cost Efficiency: Reduced waste and high automation lower overall production costs
Full Support: Backed by YUEDA’s 20+ years of packaging machinery expertise
